Vacuum Firing Furnace with Lifting Table VL 01/12 LB
You are here:
Nabertherm for Dental
Precision furnace for firing of dental ceramics
The VL 01/12 LB vacuum firing furnace is designed for precise dental ceramic firing. With a lifting table, it ensures uniform heat, minimizes porosity, and delivers consistent, high-quality results for crowns, bridges, and restorations.
Function & equipment
The VL 01/12 LB vacuum firing furnace is ideal for firing conventional ceramic veneers under normal atmosphere or vacuum. All-round heating ensures uniform temperature distribution and fast heat-up times, while the electrically driven, lowerable lifting table allows easy and convenient loading of the firing chamber.
The furnace features the specially developed D580 controller with a colorful 6.8-inch touch display for intuitive program input and visualization. Programs can be displayed graphically or in tables, freely programmed, or imported from manufacturer downloads. The free MyNabertherm App allows online monitoring of firing progress, with push notifications for status and malfunctions.
- Tmax 1200 °C
- Evacuation option for vacuum processes
- High-quality free-radiating heating elements

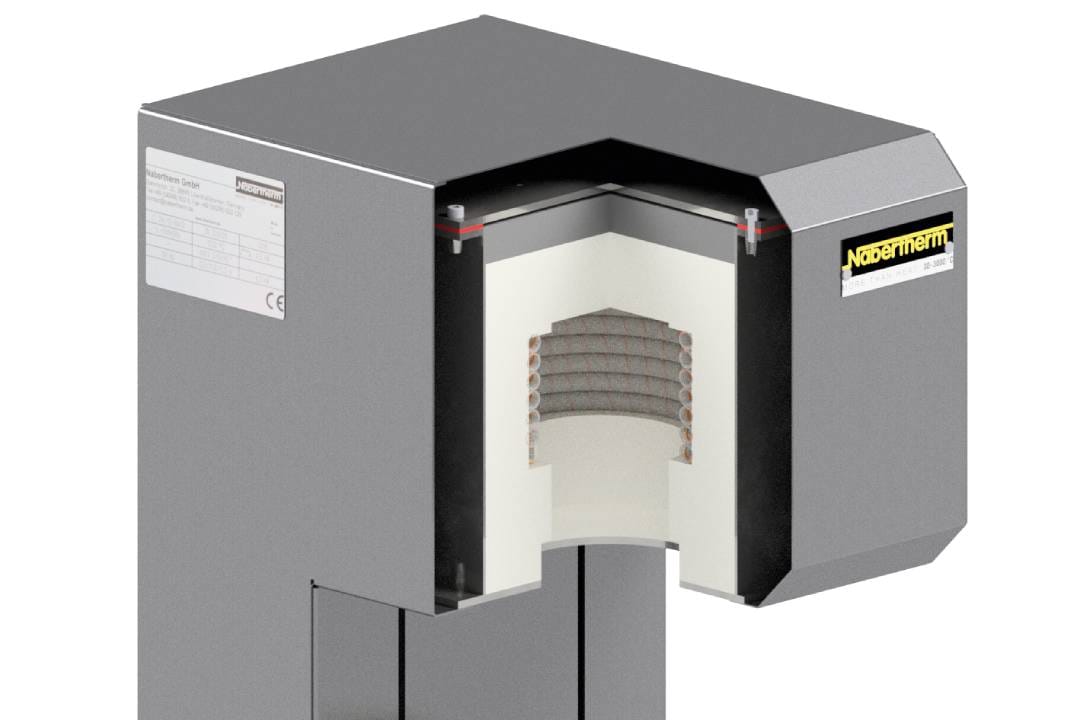

- Uniform temperature from all-round chamber heating
- Dual-shell ventilated stainless steel housing
- Insulation free of RCF and EC 1272/2008 compliant
- Stainless steel shelf for tools and firing tray
- Motorized lifting table with precise toothed belt drive
- Short process times due to low thermal mass
- Thermocouple type S for accurate temperature control
Additional equipment
Integrated Vacuum Pump
The integrated vacuum pump provides reliable evacuation for firing processes that require a vacuum atmosphere. It ensures uniform heat distribution, minimizes porosity in dental ceramics, and supports precise, high-quality results for crowns, bridges, and other restorations.
Technical specs
| Model | Tmax | Work space dimensions in mm | Charging area in mm | Outer dimensions¹ in mm | Connected load | Electrical | Weight | Heating time | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in °C | Ø | h | Ø | W² | D | H | in kW | connection* | in kg | in min3 | |
| VL 01/12 LB | 1200 | 70 | 70 | 70 | 260 | 360 | 605 | 1.8 | 1-phase | 22 | 10 |
*These furnaces are available for main voltage of 200 V, 208 V, 220 V - 240 V, 1/N/PE or 2/PE
¹ External dimensions vary when furnace is equipped with additional equipment. Dimensions on request.
² Plus 105 mm for stainless steel shelf for tools.
³ Heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE rsp. 400 V 3/N/PE).
¹ External dimensions vary when furnace is equipped with additional equipment. Dimensions on request.
² Plus 105 mm for stainless steel shelf for tools.
³ Heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE rsp. 400 V 3/N/PE).
