Overview

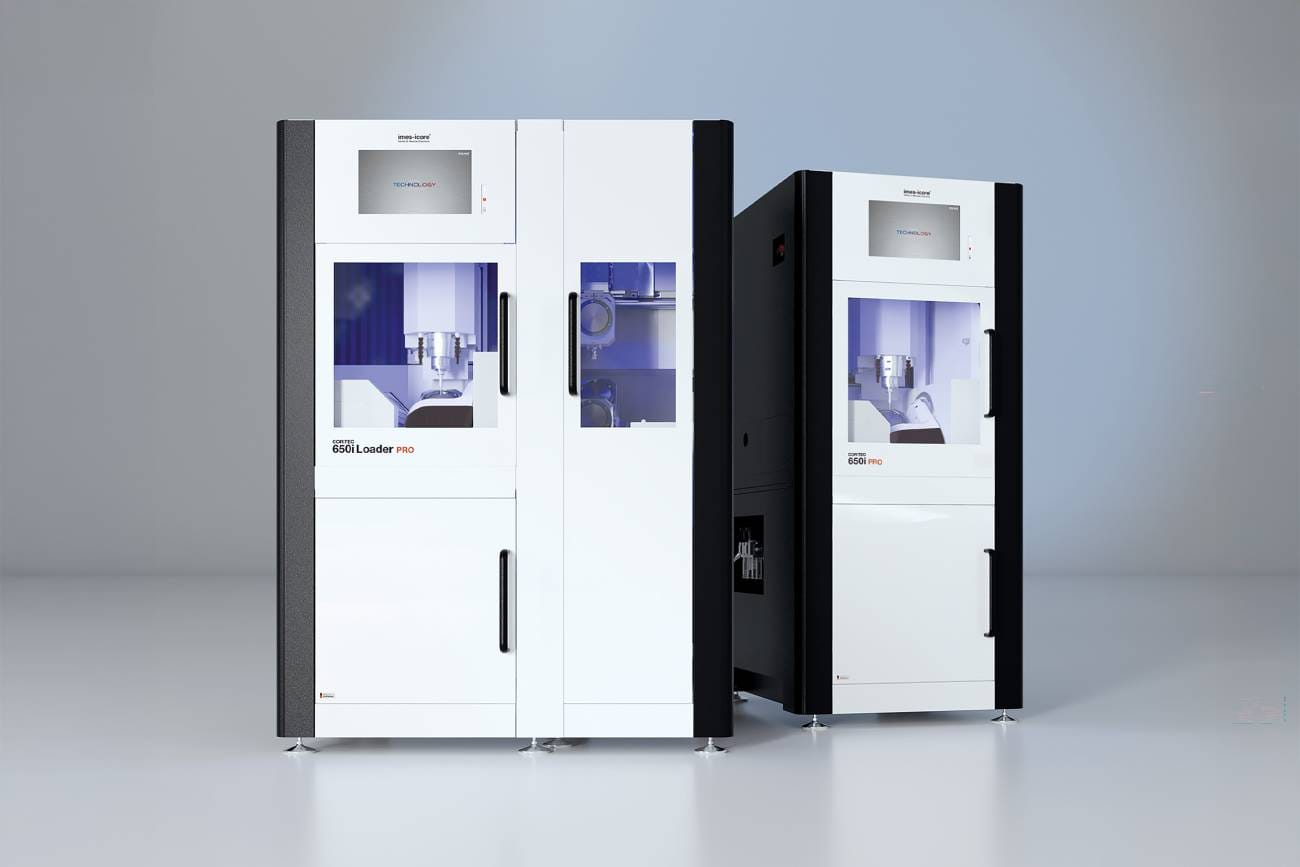

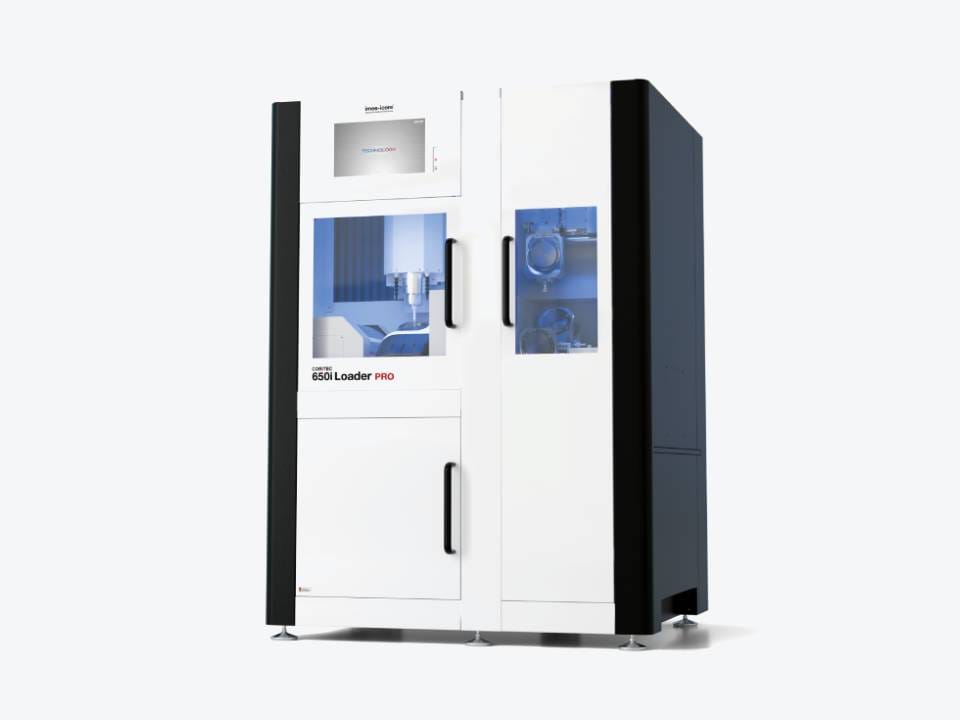

imes-icore CORiTEC 650i PRO series
The CORiTEC 650i PRO and CORiTEC 650i Loader PRO were developed to meet the highest premium machine standards and performance expectations. The CORiTEC 650i Loader PRO features a fully integrated automatic 16-slot blank changer, enabling continuous 24/7 operation while maintaining exceptional precision and reliability.
Highlights
CORiTEC® 650i PRO
Future-Oriented Technology
- Solid axis construction made of ground natural granite for 5-axis simultaneous machining
- Linear and torque motor-driven machining axes
- Direct measuring systems with 0.05 μm (26-bit resolution)

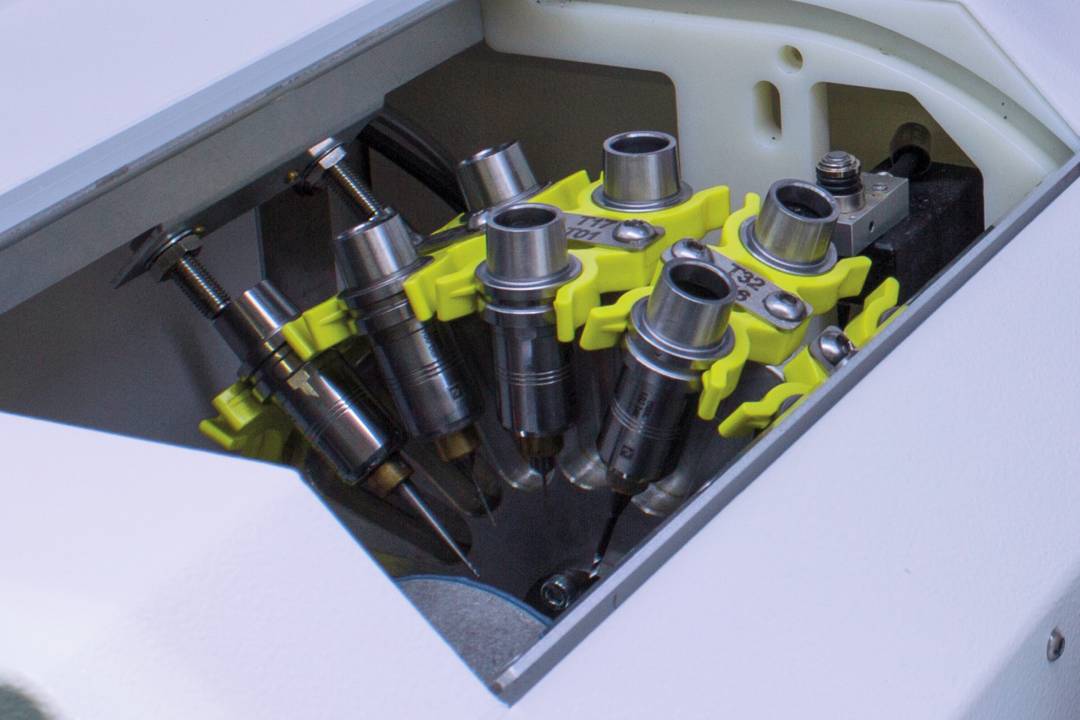

- 32-fold tool changer
- Fully automatic 16-fold blank changer
- EROWA zero-point clamping system (5000 N retraction force)
- No restrictions on materials and indications
CORiTEC® 650i PRO (hybrid process)
For LPBF post-processing
- Post-processing of metal prints (e.g., LPBF or laser-sintered metal frameworks such as model castings or telescopes)
- Open to all common metal printing systems
- Coordinated process chain (printing and milling)
- Precise 3D measurement
- Optimized CAM strategies
- Highest quality standards
Applications
- Zirconia
- Pre-milled Abutment (Ti)
- Pre-milled Abutment (CoCr)
- Titanium
- Cobalt-chrome
- Glass ceramic
- Lithium disilicate
- Hybrid ceramic
- Sintered metal
- Composite
- PEEK
- PMMA
- Wax
Machine Software
CORiTEC® Remote Dental 3.0
The machine is operated with an integrated touchscreen display using the proven control software Remote Dental 3.0.
- All important functions and control elements in one overview
- Easy-to-use tool management
- Tool runtime monitoring
- Spare tool function
- Language-neutral operation through intuitive graphical user interface
- No license fees
CAM Software
hyperDENT®
hyperDENT® is a world leading CAM software solution in the dental industry, widely respected for its modular and scalable architecture. It delivers CAM solutions precisely tailored to specific applications and implementation requirements. Suitable for companies of any size, from dental labs to in house practice labs, FOLLOW-ME! offers carefully configured hyperDENT® product bundles that ensure seamless interaction between CAM software and machining systems.
C-Clamp Integration
A new enhanced display for open holders from various machine manufacturers is available, featuring updated milling cycles, automatic undercut detection, and template assignment upon selecting an open holder.
Simplified wizard
A clearly guided workflow has been introduced, providing a simplified display of tasks to be completed, including margin lines, undercuts, and more. Updated icons also offer a more precise representation of each function.
Blank-Filter
The display of blank suggestions has been greatly improved, with clearer material filters. The process is simplified through an automatic filter for predefined CAD material information, and additional blank databases are now available.
Snap on Attachments
The strategy for machining undercut areas with T-slot or lollipop cutters has been further developed. It is ideal for milling Locator®, Dalbo®, and similar retaining elements. Optimized milling cycles can reduce roughing time by up to 20 percent.
CAM Software
iCAM V5
- 5-axis simultaneous machining and/or 3 + 2 machining to reach undercuts
- No annual license fees
- Unlimited term
- Fully automatic and easy operations with “Wizard Workflow“
- „ReFit“-Abutment exchange geometries
- Placing retaining bridges across jobs
iCAM HD
- High degree of automation
- Fast training due to intuitive workflow
- Individual management of the scope of processing options
- Strategies for tool path generation for the highest surface quality
- Complete collision monitoring
All-In-One Solutions
Integrated Workflow
imes-icore provides a complete package, including a scanner, exocad CAD, iCAM CAM software, milling and grinding tools, and CORiTEC milling machines. The integrated workflow supports both wet and dry milling processes and, combined with exceptional machine stability, ensures reliable results even for the most demanding applications. This comprehensive solution delivers remarkable outcomes across a wide range of dental workflows.
Integrated Hybrid Workflow
The CORiTEC 650i PRO series sets new standards in hybrid technology for high-quality dental prostheses, redefining re-milling of LPBF units. Its workflow combines cost-effective 3D printing of complex structures with precise post-processing for optimal fit and smooth surfaces. Integrated 3D measurement, intelligent CAM software, and automatic data transfer ensure all process chain interfaces are perfectly coordinated.
Future Technology
Additional Accessories
The CORiTEC 650i PRO series seamlessly integrates with scanners and exocad, offering an extensive selection of accessories, including CAM software, sintering furnaces, and extraction systems.
Technical Data
Monitor
- Integrated 15.6“ touchscreen
Control Software
- iNC software – integrated CNC software based on industrial standards
Blank changer
- CORiTEC 650i Loader PRO: automatic up to 16 blank holder
Tool changer
- 32-fold
Cooling
- 19 liter / 71.92 gpm tank integrated
Air pressure
- External air pressure required 6,5 – 9,0bar @ 150l/min
Tool length control
- ≤ 0.002 mm precision
Spindle type
- High frequency spindle
Drive motors
- Linear & torque drives
Max. rotational speed / spindle power
- 5.7 KW / 50.000 rpm
Tools
- Milling and grinding tools with 6 mm diameter
Tool holder
- Industrial high-precision HSK 25
