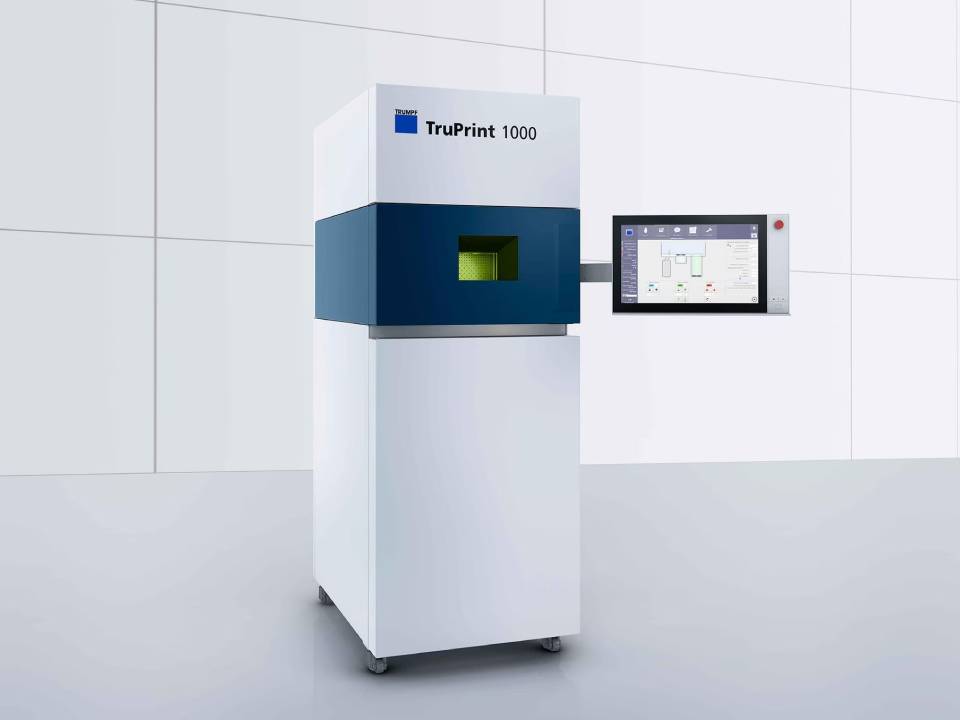

TruPrint 1000 | Automated Metal 3D Printer
The next-generation TruPrint 1000 builds on its proven success with enhanced productivity and premium quality, made possible by a full-field multi-laser system and a completely redesigned gas flow for improved homogeneity. Designed for processing metal powders using the Laser Metal Fusion process (also known as Powder Bed Fusion), this robust and high-precision 3D printer is ideal not only for the dental industry but also for research and development as well as small-series production. Its compact, newly optimized design allows the machine to easily fit through standard doors, making it well-suited for use in laboratories, including dental clinics and academic institutions.
Highlights
Highest Build Rates and Maximum Uptime
Achieve faster production with the dual 200 W multilaser system and benefit from uninterrupted operation with automatic substrate plate change.
Outstanding Part and Surface Quality
Enjoy superior results with a newly developed gas flow system and enhanced laser focus stability, ensuring consistent and precise builds.
Ergonomic and Contactless Powder Handling
Ensure safe and efficient powder management through an inert powder cycle, featuring a glove box system and easily interchangeable powder cylinders.
Enhanced Process Flexibility and Monitoring
Adapt to different requirements with an adjustable laser spot diameter (55/80 µm) and gain deep insight through comprehensive process analysis and monitoring tools.
Optimized for Dental Applications
Reduce part costs significantly with advanced features like preform printing, multiplate capability, hybrid manufacturing, and seamless integration into digital workflows.
Compact Design for Seamless Integration
Designed to fit through standard doors and into tight spaces, the TruPrint 1000 is perfect for dental labs, research facilities, and university settings, offering high performance in a compact footprint.

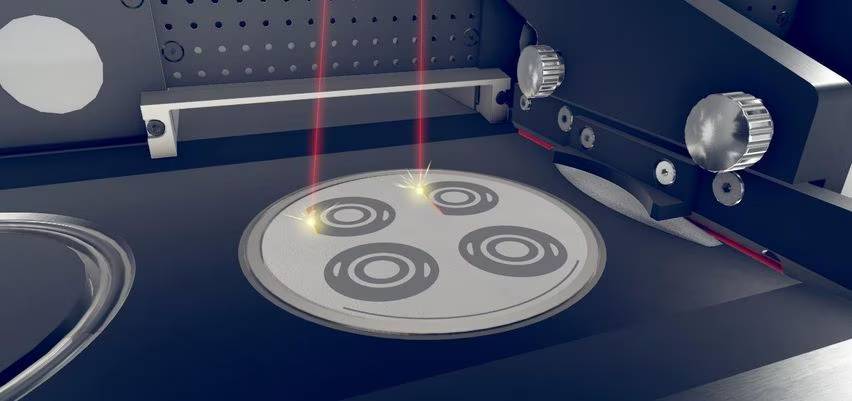

Fullfield multilaser
Boost your productivity with the multilaser option: Two 200 W TRUMPF fiber lasers (1,070 nm wavelength) simultaneously scan the entire build volume with full overlap. This increases part output by up to 80% in the same time, offering faster delivery and greater flexibility for customer orders.
Multiplate option
Manage demand spikes and extend runtime without operator intervention. The build cylinder holds up to four substrate plates, enabling automatic changes without stopping the LMF process. Software automates support between jobs, while completed builds collect in an overflow bin.

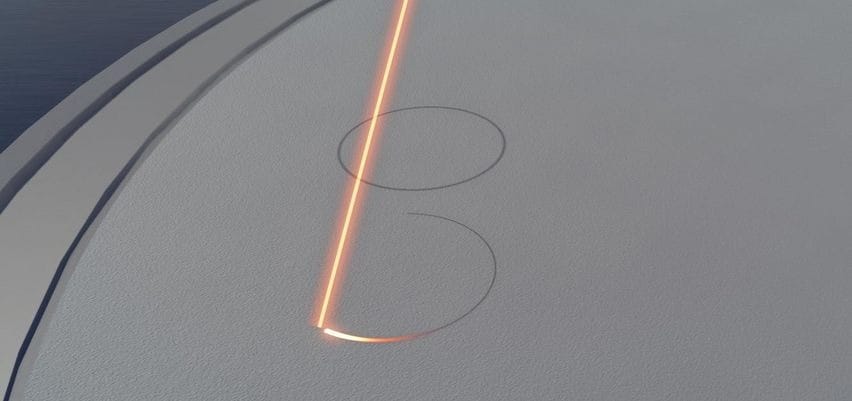

Motorized optics
Easily switch between 55 and 80 µm beam diameters in the powder bed to prioritize surface quality or productivity. This adjustable beam size optimizes different applications and enables efficient processing of materials requiring higher energy density, like highly reflective metals.

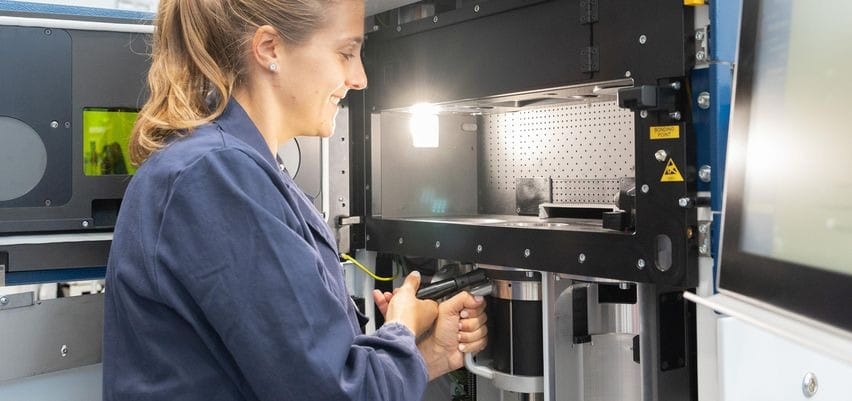

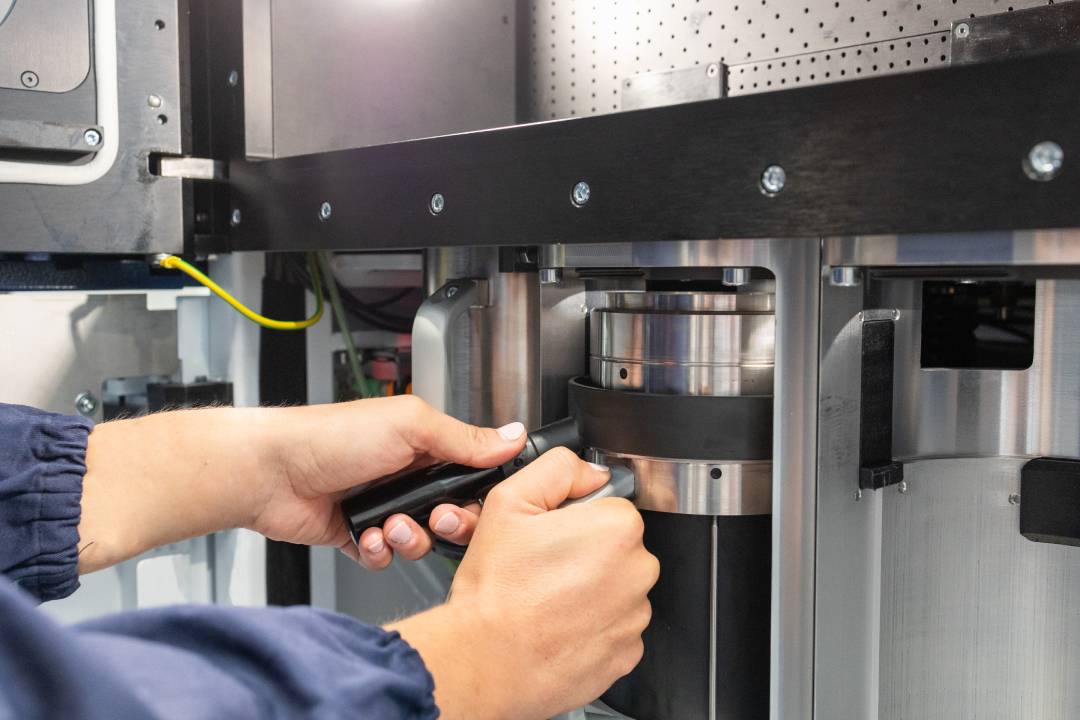

Cylinder replacement
Cylinder changes are as simple as using an espresso machine. Interchangeable build and supply cylinders increase productivity and reduce setup time. Jobs restart quickly after material changes, and the supply cylinder can be filled during production. A smaller build volume saves on costly materials.
Powder handling
Ergonomic, contactless powder handling comes in a compact design. A closed powder circuit under shielding gas uses a glove box and interchangeable cylinders with a separate sieving station. Powder is sieved, reprocessed, and stored under inert conditions.
Preform option
Produce single abutments quickly and accurately while cutting costs by printing only the patient-specific portion. One preform can hold up to 64 abutments, which are easy to remove. Automatic preform detection supports industrial-scale dental production.
Monitoring component quality
An integrated camera and automatic image processing let you monitor the powder bed in real time. You get a clear, layer-by-layer view of the component’s condition and quality. The system also detects coating issues and protruding parts in the powder bed.

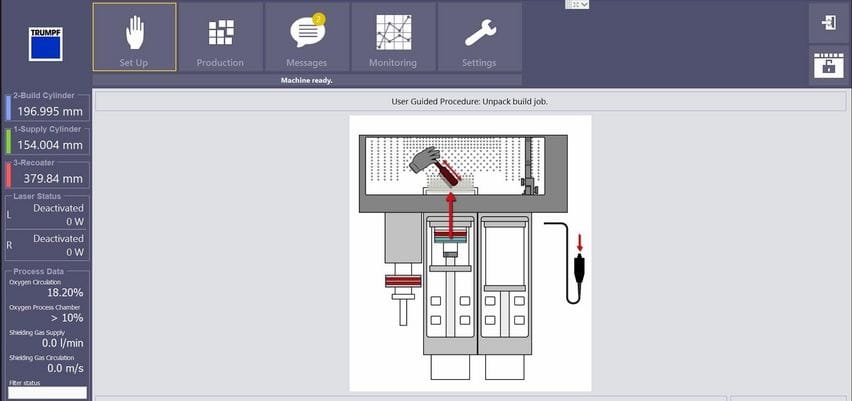

Setup wizard
The TruPrint setup wizard makes machine operation simple and user-friendly. Accessed directly through the HMI, it guides the operator step by step through the setup process,such as creating layer zero, ensuring efficient and error-free preparation for printing.

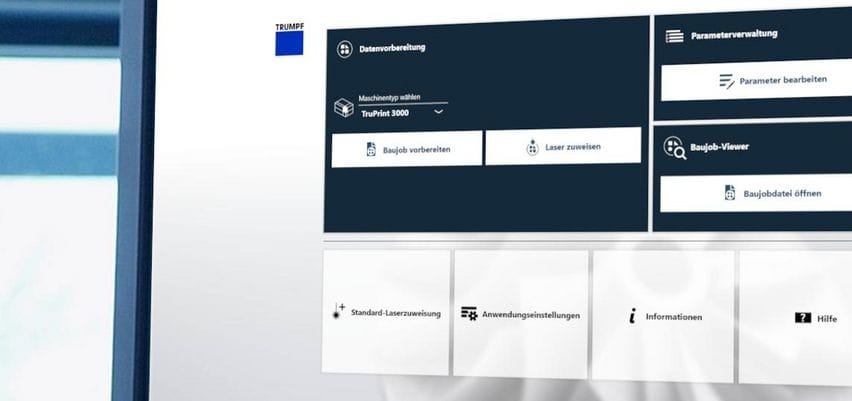

Job preparation
TruTops Print ensures optimal build preparation with minimal supports. The TruPrint 1000 software quickly calculates jobs, supports downskins under 10°, and offers synchronized cobalt-chrome parameters for fast production. Standard dental programs simplify design.
Applications
Advanced Dental Manufacturing with TruPrint 1000
Discover how the TruPrint 1000 delivers enhanced precision, efficiency, and flexibility for producing high-quality dental components and hybrid process solutions.

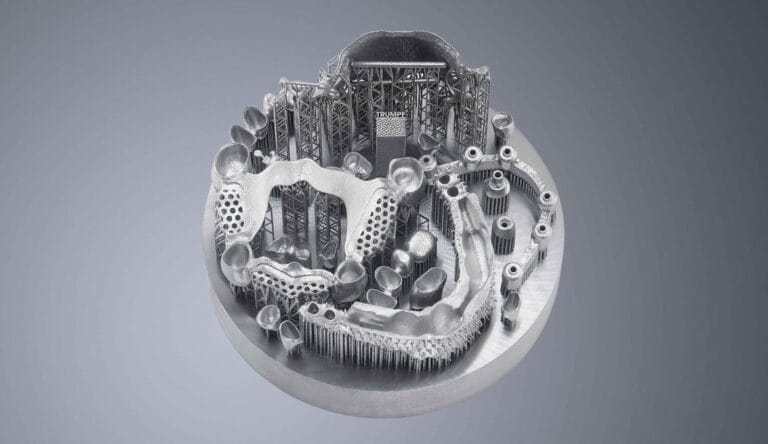

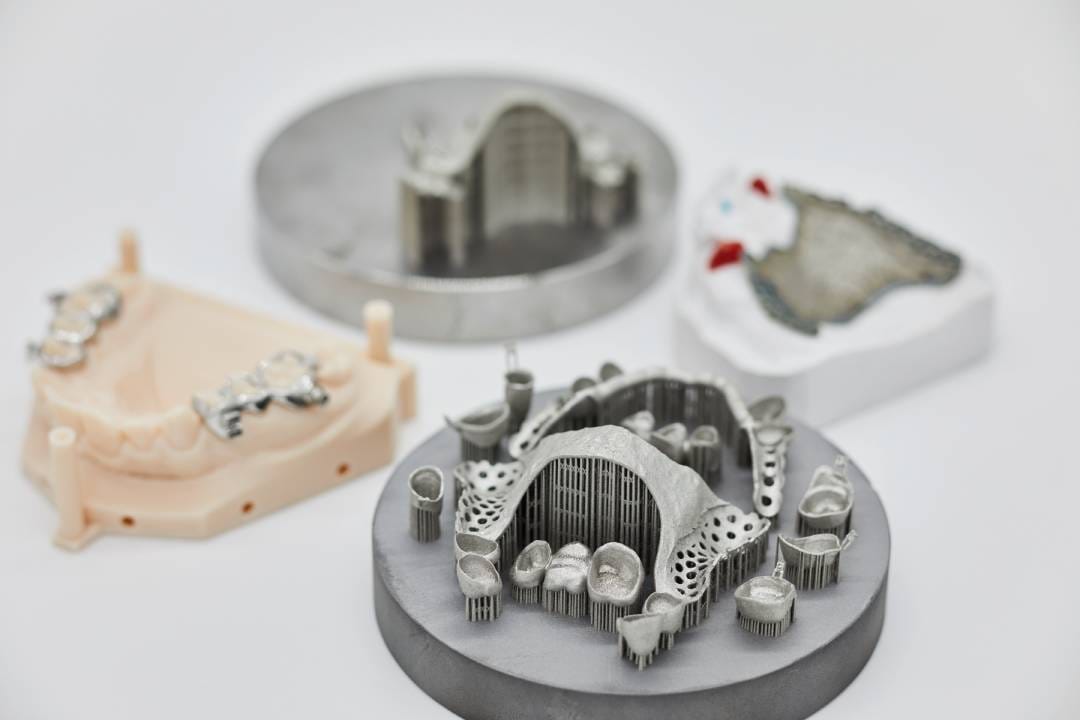

Dental plates
The dental plate displays various dental applications printed using the new TruPrint 1000, showcasing significantly improved performance and component quality.

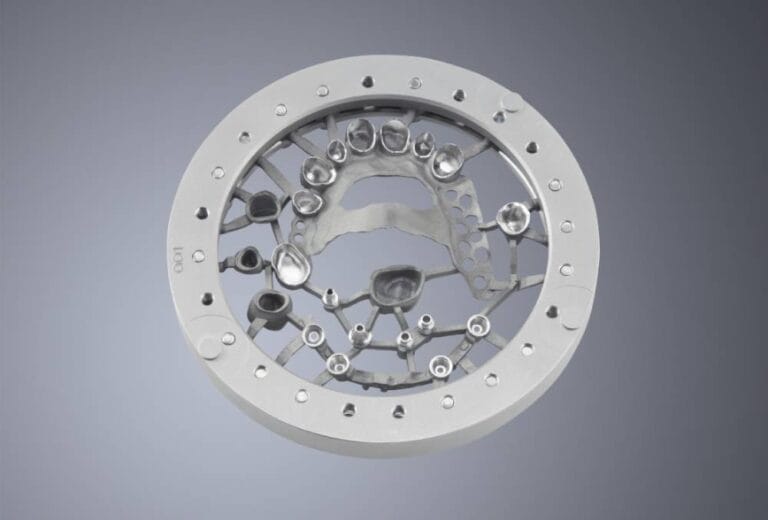

Hybrid Milling
Measuring points are added to the dental plate for use with the milling machine, allowing defined fit areas to be remilled. This illustrates a possible dental hybrid process chain.

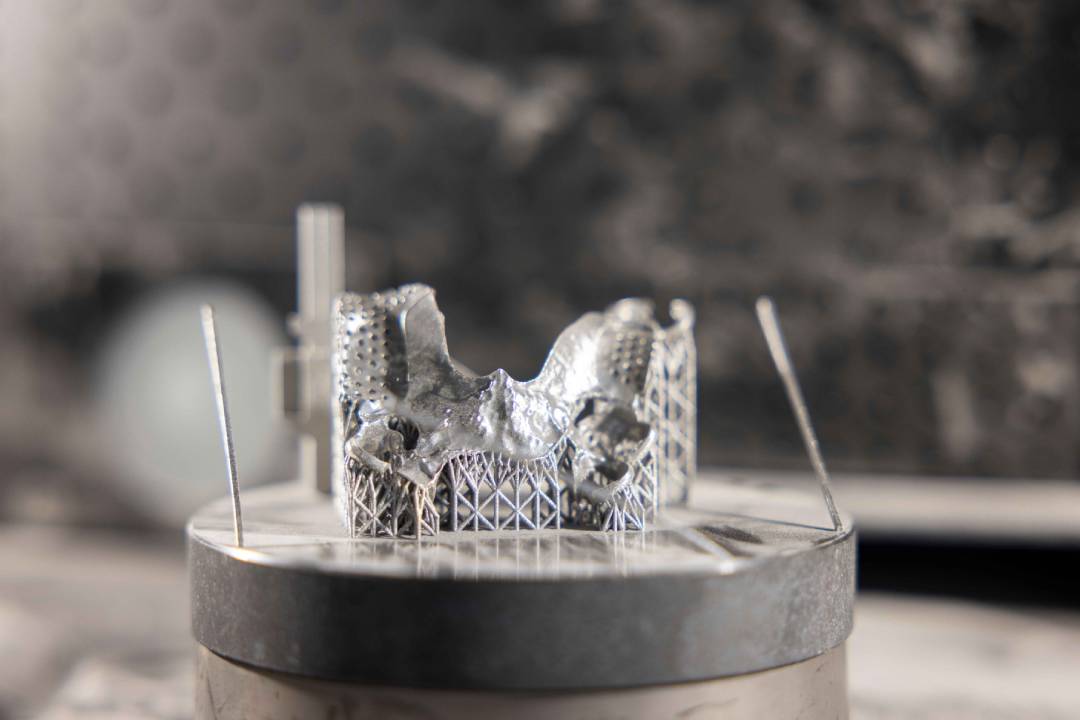

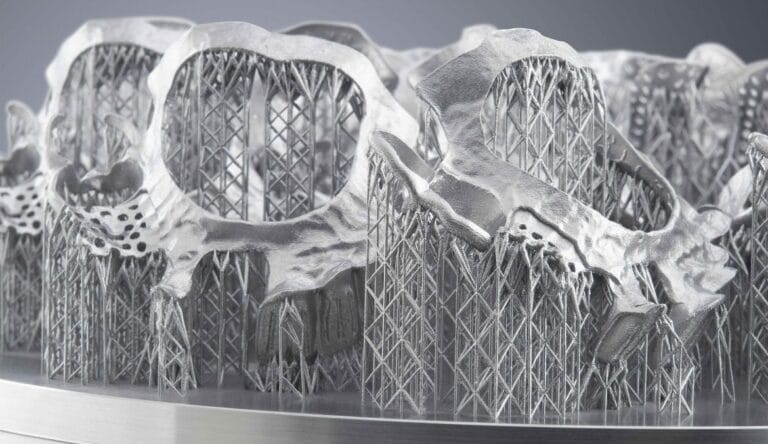

Removable partial denture
The TruPrint 1000 enables flexible production of intricate RPDs in materials like cobalt chrome, featuring new support structures that simplify and speed up the reprocessing steps.

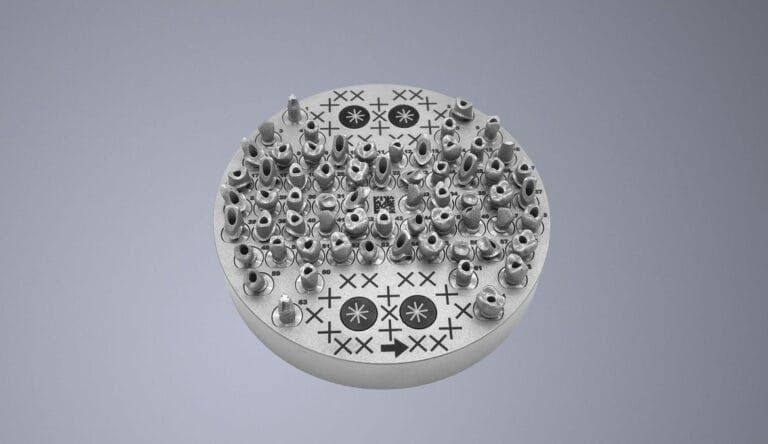

Dental plate with preform
The TruPrint 1000 Preform option allows fast, precise production of single abutments, reducing costs by printing only the custom portion. Up to 64 can be made and easily removed.
Software

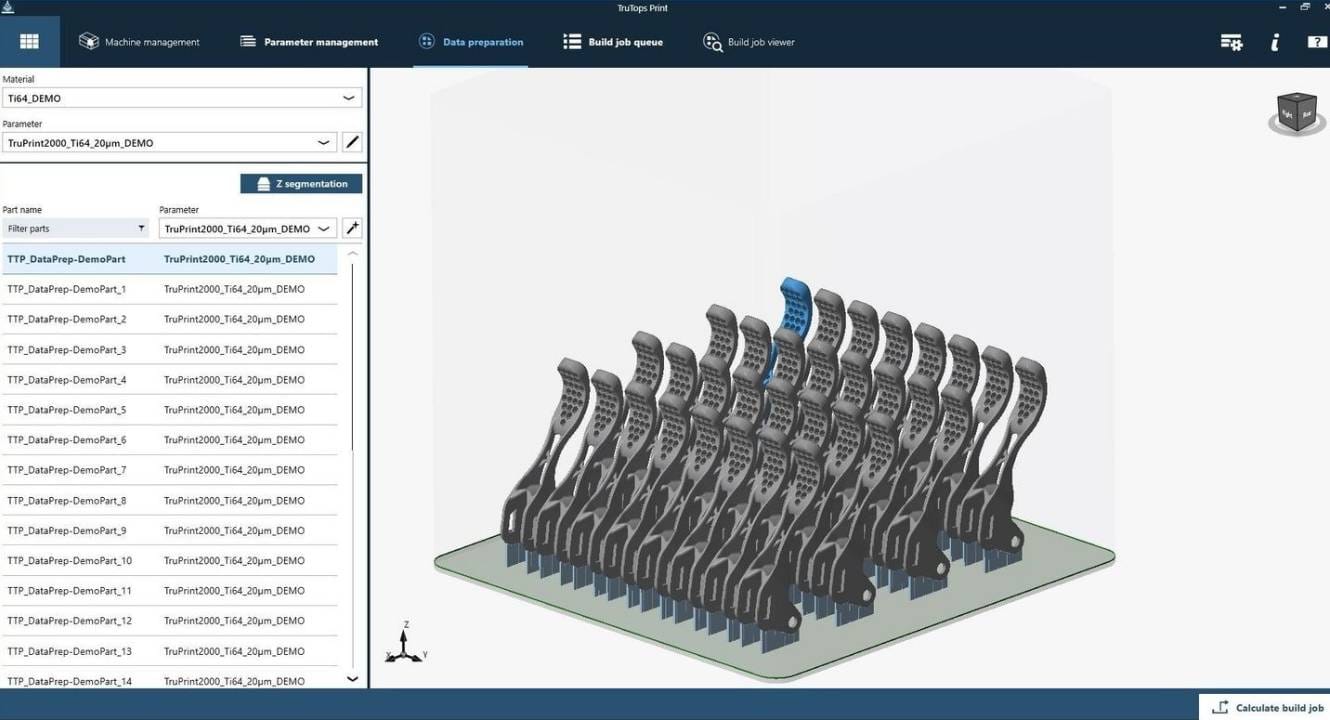

TruTops Print
TRUMPF’s TruTops Print software maximizes the performance of TruPrint machines. Its modern interface offers clear, easy access to all functions, ensuring high efficiency and printing quality. Features like z-segmentation, flexible data preparation, and intuitive parameter management enable precise control. The integrated BuildJob Viewer lets you verify the quality of vector data in WZA format.

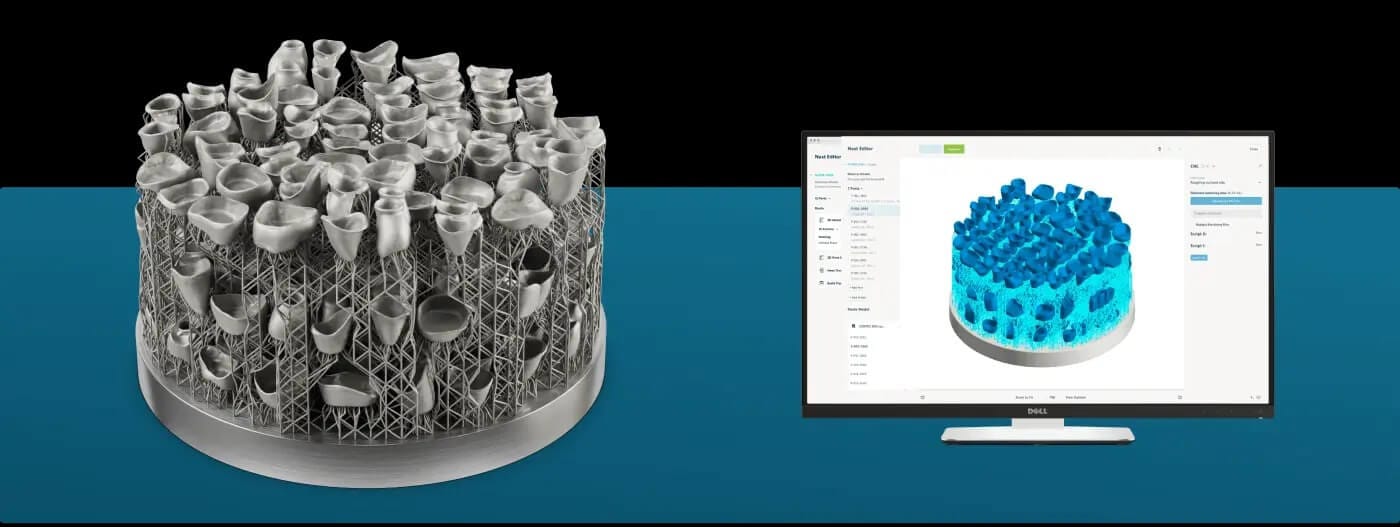

Oqcam
Oqcam for TRUMPF offers advanced monitoring and quality control for TruPrint machines. Its intuitive interface provides real-time insights and easy access to all monitoring functions. With automated defect detection, process tracking, and detailed reporting, it helps ensure consistent part quality and reduces downtime. The software supports seamless integration with TruTops Print for a streamlined production workflow.
Options
Full-Field Multilaser System
Increase productivity up to 80% with two 200 W TRUMPF fiber lasers (55 or 80 µm beam) simultaneously scanning the build area. This creates more parts in the same time with full overlap, eliminating seam marks by exposing every contour completely.
Motorized Optics Control
Switch easily between 55 and 80 µm beam diameters to balance surface finish and build speed. Optimize for high-quality surfaces or faster builds, including materials needing higher energy density like reflective metals.
Inert Powder Cycle System
Ensure safe, professional powder handling even in small formats. Connect to external sieving or prep stations via standard interfaces, minimize powder contact, and process reactive materials like titanium by controlling oxygen below 100 ppm.
Multiplate Automation
Manage demand spikes and extend runtime without operator input. The build cylinder holds up to four substrate plates, which swap automatically without stopping the process. Finished builds are collected in an overflow bin for continuous work.
Preform Production Option
Quickly produce precise single abutments with reduced costs by printing only patient-specific sections. Up to 64 abutments fit per preform and are easy to remove. Automated detection aids dental additive manufacturing industrialization.
Powder Bed Monitoring
Continuously monitor the powder bed using an integrated camera and automatic image processing in the component chamber, providing real-time, layer-by-layer quality analysis for consistent part production.
Calibration Tools
Select from calibration options like laser power calibration for multilasers, focus position measurement, and scan field calibration, allowing easy recalibration and documentation of measurement results.
Digital Integration & Connectivity
Seamlessly integrate TRUMPF machines into your software environment. Whether with Oseon, monitoring tools, or third-party systems, OPC UA-based interfaces offer flexible digital connectivity for smart workflows.
Monitoring

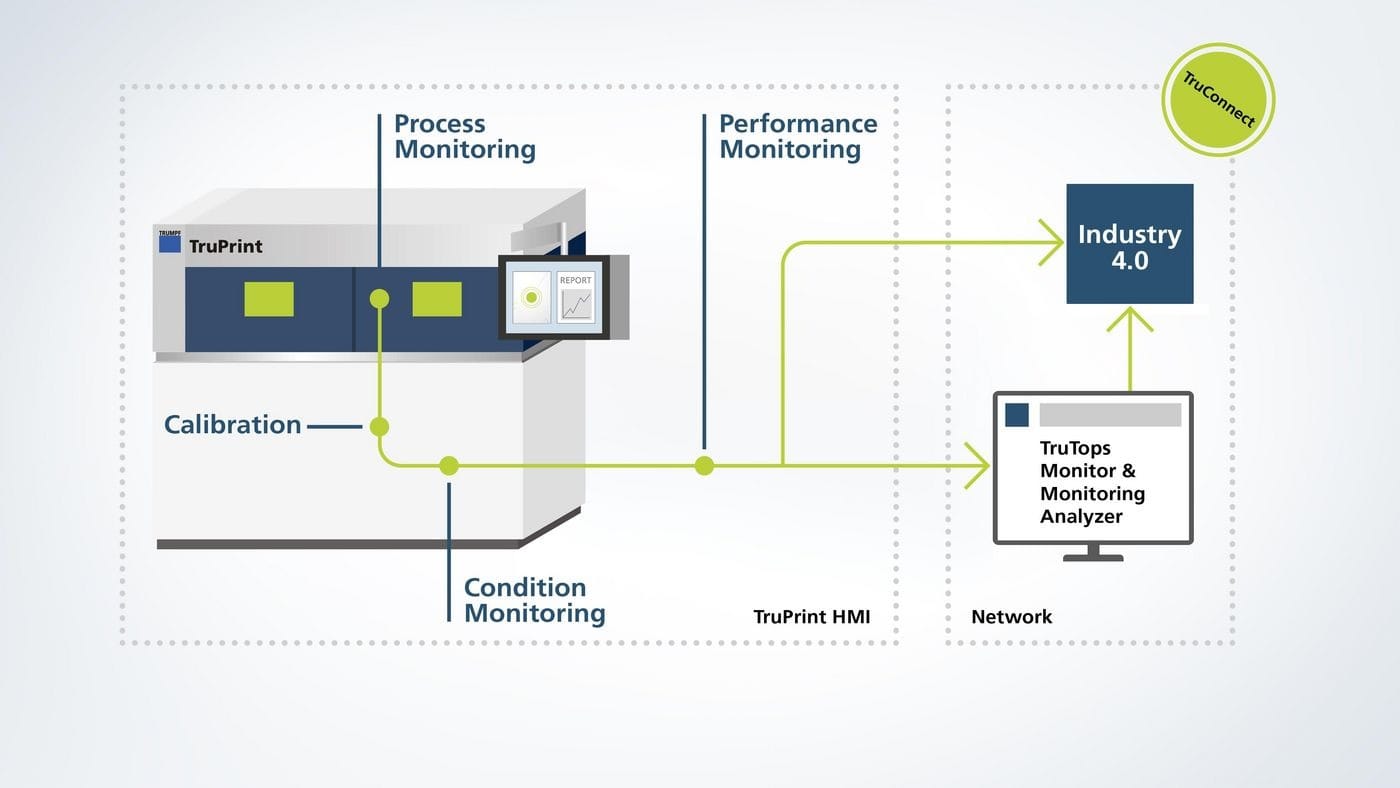

Intelligent Monitoring & Calibration
TRUMPF’s intelligent monitoring solutions let you easily monitor, analyze, and calibrate the LMF process of TruPrint machines. Gain higher efficiency and part quality through real-time sensor data tracking. Monitor process, condition, and performance directly via the machine HMI or offline with the Monitoring Analyzer. TruTops Monitor provides full transparency and remote access via PC or tablet. The OPC UA interface allows flexible integration into your own software. Optional calibration tools let you verify key process parameters before starting a build.
Periphery
Compact Sieving Solution
Ideal for the TruPrint 1000, the optional sieving machine from partner assonic supports efficient, closed-loop powder handling in an inert environment. Tailored for small-format applications, it ensures safe and contamination-free reuse while reducing operator effort and maintaining consistent powder quality.
Integrated Powder Preparation Station
Easily recycle new or used powder from the overflow bin with the powder preparation station. After unpacking the part, powder is collected and sieved directly into the supply cylinder under an inert atmosphere. The integrated scale automates weighing, and the station supports multiple TruPrint machines at once.
Powder
Optimized Powders and Process Parameters
TRUMPF’s TruPrint1000 offers an open-materials platform for Cobalt-Chrome (CoCr), TItanium and Stainless Steel for Dental, Orthodontics and Medical applications; popular materials are validated with powder manufacturers Premium metal powders are recommended for repeatable results. Using preferred powders alongside precise process parameters ensures superior material quality and dependable performance of 3D-printed parts.
We proudly feature BEGO’s CoCr innovative Mediloy RPD (Wironium) and Mediloy S-Co materials, trusted worldwide for their precision, reliability and unique ductility properties. Our collaboration ensures access to high-quality products that enhance every step of the dental manufacturing process, from design to final production.
BEGO powders are available to purchase via our online store for the US market only.
Effective build volume (standard)
- Diameter 98 mm x 100 mm Height
Effective build volume (option: build volume reduction)
- Diameter 48 mm x 100 mm Height
Processable materials
- Metal powders for welding, such as stainless steels, tool steels, and aluminum [1], nickel basis, cobalt-chrome, copper, titanium [1] or precious metal alloys, amorphous metals. Current availability of materials and their parameters available on request. [1] Only with option glove box + oxygen sensor, high resolution.
Maximum laser power at the workpiece (TRUMPF fiber laser)
- 200 W
Beam diameter (standard)
- 80 μm
Beam diameter (motorized optics)
- 55/80 μm
Layer thickness
- 20 – 60 μm
Build rate
- 10 – 50 cm³/h
Electrical connection (voltage)
- 230 V
Electrical connection (current intensity)
- 7 A
Electrical connection (current intensity - multilaser option)
- 9 A
Electrical connection (frequency)
- 50/60 Hz
Shielding gas
- Nitrogen, argon
Dimensions (W x H x D)
- 780 mm x 2050 mm x 1160 mm
Weight (with multilaser option)
- Max. 900 kg
