imes-icore CORiTEC 650i series

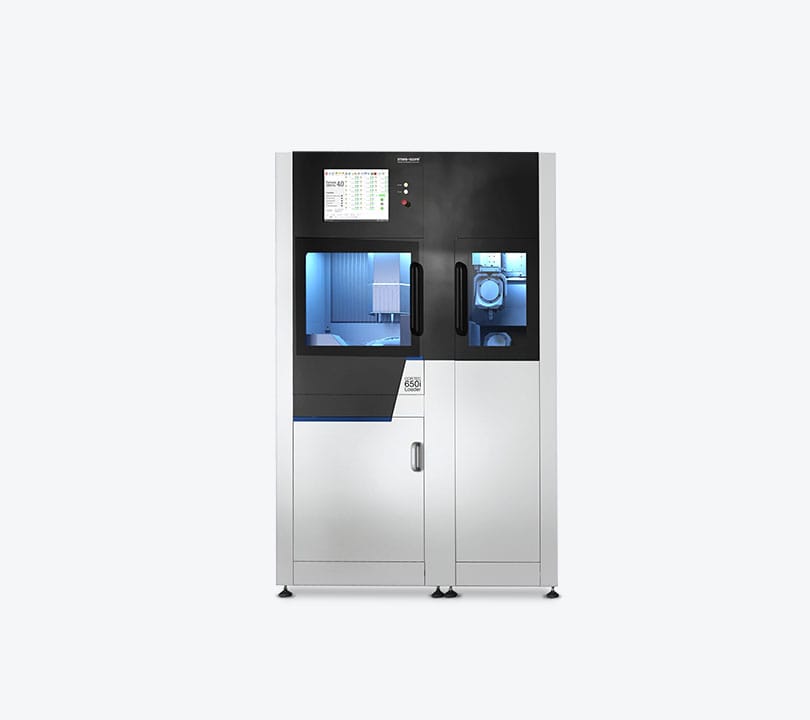

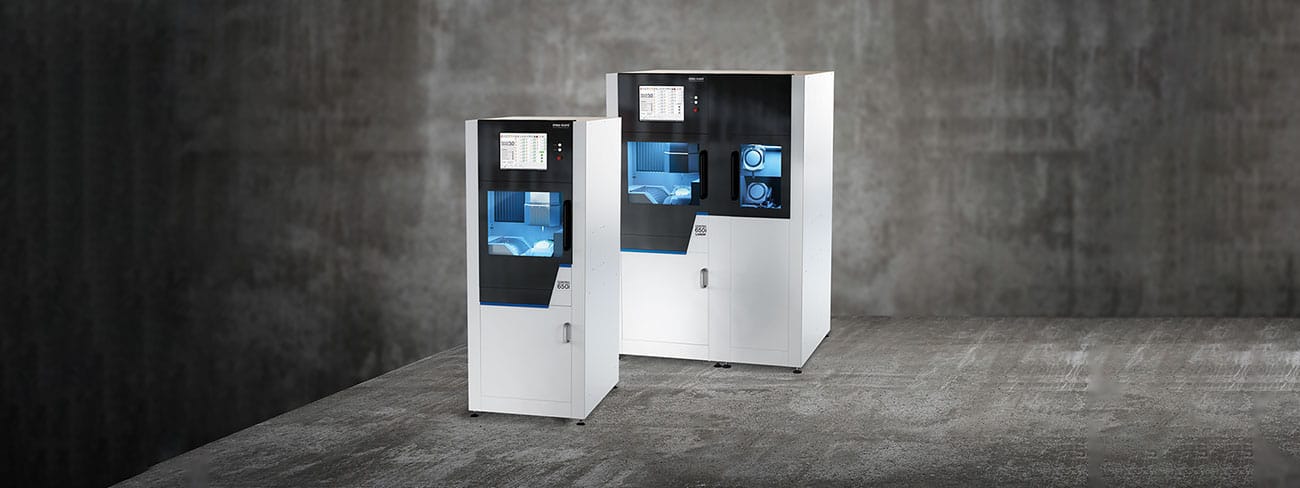

The CORiTEC 650i and CORiTEC 650i Loader machine systems are designed for PREMIUM standards and high-end requirements. The CORiTEC 650i Loader features a fully integrated automatic 16-position blank changer, enabling 24/7 operation at full capacity with consistent high precision, all without the need for supervision.

Highlights

CORiTEC® 650i

Applications

Machine Software

CORiTEC® Remote Dental 3.0

The machine is operated with an integrated touchscreen display using the proven control software Remote Dental 3.0.

CAM Software

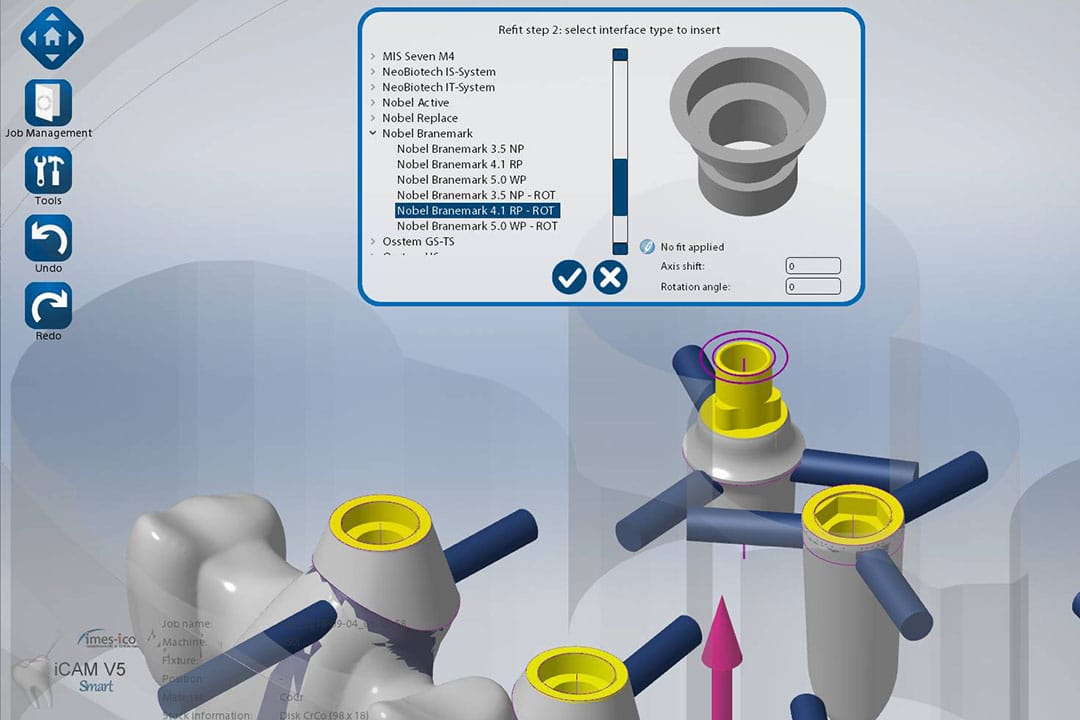

iCAM V5

CAM Software

hyperDENT®

hyperDENT® is the world leading software system in the dental CAM market and is valued among experts for its modular product structure. Our customers are provided with CAM solutions tailored to their specific application and implementation needs. Regardless of company size and whether for dental or practice labs, FOLLOW-ME! offers suitable hyperDENT® product bundles for a perfect interaction between CAM and machines.

C-Clamp Integration

A new and improved display of the open holders from various machine manufacturers has been implemented. Revised milling cycles, automatic undercut detection and automated template assignment when selecting the open holder are now possible.

Simplified wizard

A very strongly guided workflow through simplified display of the tasks to be completed (margin lines, undercuts etc.) has been introduced. In addition, revised icons provide a more precise representation of the function.

Blank-Filter

A significantly improved display of the blanks suggestions has been achieved. The material filters are displayed more clearly. The process has been simplifiedwith the help of an automatic filter function for predefined material information from CAD systems. Further blank databases are available.

Snap on Attachments

Further development of the strategy for machining undercut areas using T-slot or lollipop cutters. This option is used when milling Locator®, Dalbo® or similar retaining and connecting elements. By optimizing the milling cycles, a time saving of 20 percent can be achieved during roughing alone.

All-In-One Solutions

Integrated Workflow

imes-icore provides a comprehensive package, including scanners, exocad CAD, iCAM CAM software, milling and grinding tools, and CORiTEC milling machines.

The integrated workflow, supporting both wet and dry milling processes, ensures stable, reliable results for the most demanding applications.

An ideal solution for achieving exceptional results across a wide range of uses.

Additional Accessories

The CORiTEC 650i series is compatible with scanners and exocad, offering an impressive range of additional accessories, including CAM software, sintering furnaces, and extraction systems.

Technical Data

Monitor

  • integrated 15“ touchscreen

Control Software

  • CORiTEC Remote Dental 3.0 integrated CNC software

Blank changer

  • CORiTEC 650i Loader: automatic up to 16 blank holder

Tool changer

  • 32-fold

Cooling

  • 19 liter / 71.92 gpm tank integrated

Air pressure

  • External air pressure required 6,5 – 9,0bar @ 150l/min

Tool length control

  • ≤ 0.002 mm precision

Spindle type

  • High frequency spindle

Drive motors

  • Linear & torque drives

Max. rotational speed / spindle power

  • 3.2 KW / 50.000 rpm

Tools

  • Milling and grinding tools with 6 mm diameter
