Overview

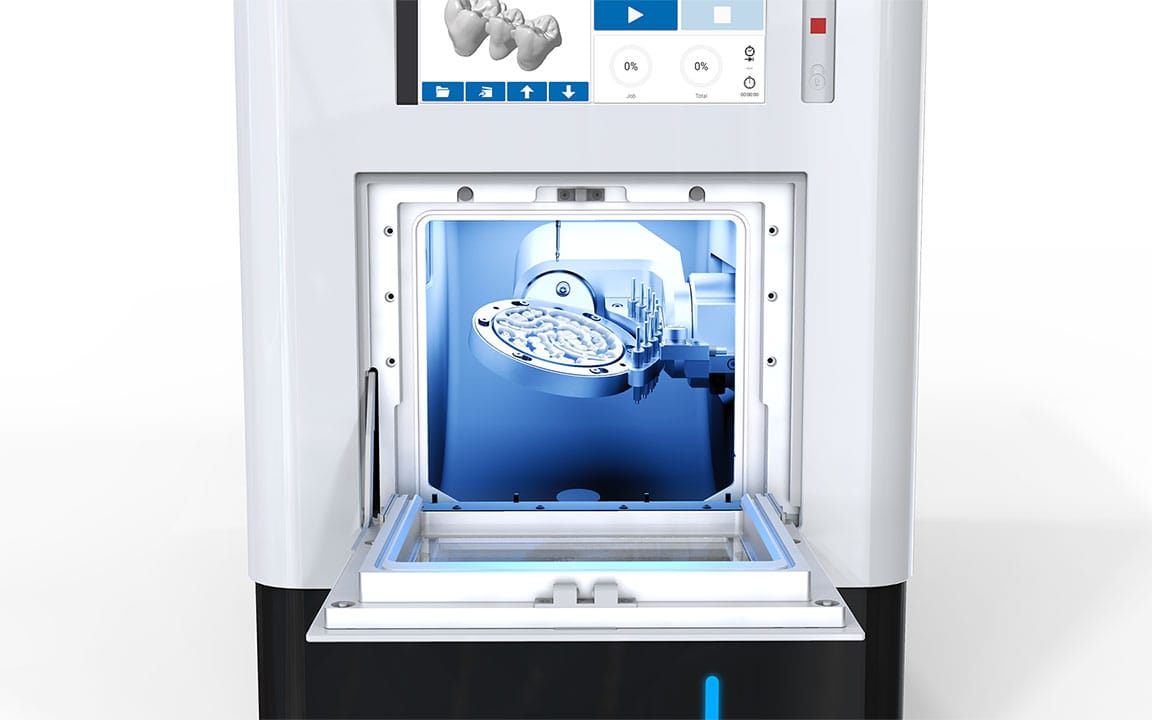

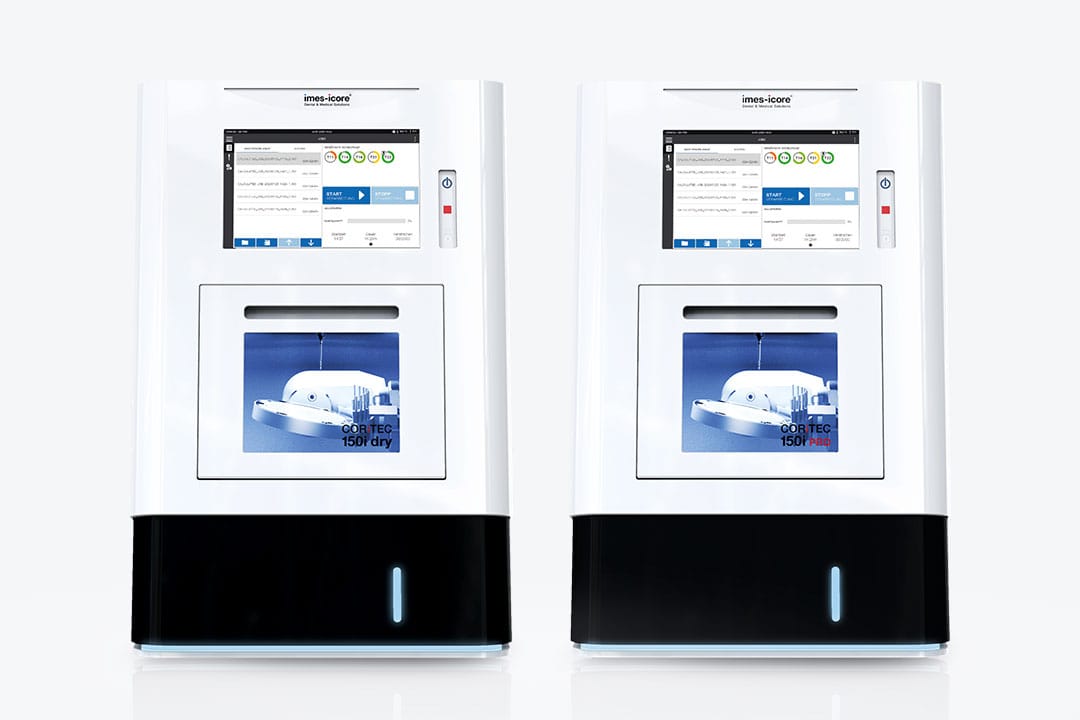

imes-icore CORiTEC 150i series
With machining angles of up to 360°/130° (A-axis/B-axis), the system can easily handle even the most demanding tasks. The 10-position tool changer further enhances the flexibility of the new CORiTEC 150i series. The quick clamping system allows for fast and easy changes of various holder systems while maintaining consistent precision.


Highlights
CORiTEC® 150i PRO
- Metal processing of CoCr blanks
- Turn-milling-grinding-processing possible
- 100.000 rpm | 860 W high-frequency spindle
- Modern, closed mono-block cast body for highest stability and precision
- Half-open blank holder "C-Clamp" (optional)
- Minimum external compressed air requirement, only 3 bar required
- High precision due to integrated temperature compensation
- No external PC required
- Integrated HD camera for online monitoring
- Minimal footprint
CORiTEC® 150i Dry
- Auto calibration
- Metal processing of CoCr blanks
- Turn-milling-grinding-processing possible
- 100.000 rpm | 860 W high-frequency spindle
- Modern, closed mono-block cast body for highest stability and precision
- Dry machining possible
- High precision due to integrated temperature compensation
- Short amortization period
- Minimal footprint
- Integrated HD camera for online monitoring

Applications
- Zirconia
- Pre-milled Abutment (Ti)
- Pre-milled Abutment (CoCr)
- Cobalt-chrome
- Glass ceramic
- Lithium disilicate
- Hybrid ceramic
- Sintered metal
- Composite
- PEEK
- PMMA
- Wax


Machine Software
CORiTEC® SmartControl
- Modern design and simple touch operation
- Intelligent selection of milling jobs
- Easy tool and material loading
- Auto-calibration of the machine
- Wizard guided cleaning and maintenance
- Connection to the Dental Smart Market (DSM)
- Automatic update function
- Multilingual program interface

CAM Software
iCAM V5
- 5-axis simultaneous machining and/or 3 + 2 machining to reach undercuts
- No annual license fees
- Unlimited term
- Fully automatic and easy operations with “Wizard Workflow“
- „ReFit“-Abutment exchange geometries
- Placing retaining bridges across jobs
iCAM HD
- High degree of automation
- Efficient work due to support in job management
- Fast training due to intuitive workflow
- Individual management of the scope of processing options
- Worldwide “up to date” at any time through automatic update function
- Creation of individual quality standards by the user
- Strategies for tool path generation for the highest surface quality
- Complete collision monitoring
CAM Software
hyperDENT®
hyperDENT® is the world leading software system in the dental CAM market and is valued among experts for its modular product structure. Our customers are provided with CAM solutions tailored to their specific application and implementation needs. Regardless of company size and whether for dental or practice labs, FOLLOW-ME! offers suitable hyperDENT® product bundles for a perfect interaction between CAM and machines.
C-Clamp Integration
A new and improved display of the open holders from various machine manufacturers has been implemented. Revised milling cycles, automatic undercut detection and automated
template assignment when selecting the open holder are now possible.
Simplified wizard
A very strongly guided workflow through simplified display of the tasks to be completed (margin lines, undercuts etc.) has been introduced. In addition, revised icons provide a more precise representation of the function.
Blank-Filter
A significantly improved display of the blanks suggestions has been achieved. The material filters are displayed more clearly. The process has been simplifiedwith the help of an automatic filter function for predefined material information from CAD systems. Further blank databases are available.
Snap on Attachments
Further development of the strategy for machining undercut areas using T-slot or lollipop cutters. This option is used when milling Locator®, Dalbo® or similar retaining and connecting elements. By optimizing the milling cycles, a time saving of 20 percent can be achieved during roughing alone.

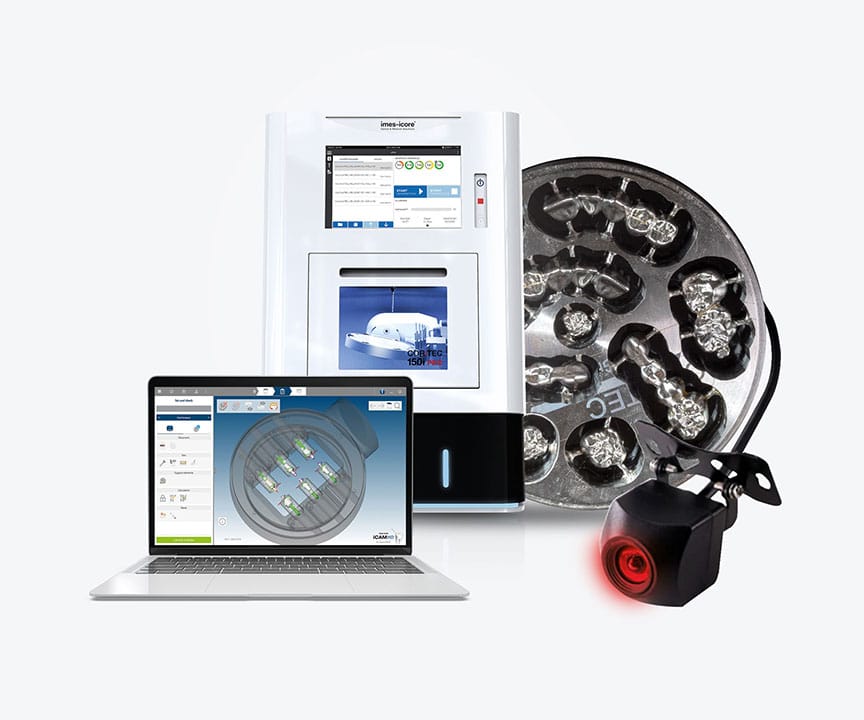

All-In-One Solutions
Integrated Workflow
imes-icore provides a complete package, including scanner, exocad dentalCAD, iCAM CAM software, milling and grinding tools, and CORiTEC milling machines.
The integrated workflow for both wet and dry milling processes requires minimal external compressed air (only 3 bar), ensuring reliable results.
An ideal solution for achieving exceptional outcomes across a variety of applications.
Additional Accessories
The CORiTEC 150i series is compatible with scanners and exocad, and stands out with its extensive range of additional accessories, including CAM software, sintering furnaces, extraction systems, and machine tables.

Technical Data
Monitor
- integrated 10‘1″ touchscreen
Control Software
- CORiTEC SmartControlTM integrated CNC software
Tool changer
- 10-fold
Cooling
- 3 liter / 11.36 gpm tank integrated
Illumination
- 3 LED status colors
Air pressure
- External compressed air required 3 bar @ 50l /min
Tool length control
- ≤ 0,002 mm precision
Spindle type
- high-frequency spindle
Max. rotational speed / spindle power
- 100.000 rpm / 860 Watt
Integrated PC
- Windows based
Tools
- Milling and grinding tools with 3 mm tool shaft
